Citrix Command Center - Installation

In this section we will proceed to install the Citrix Command Center software.

Installation Instructions

Download

In this section we will proceed to install the Citrix Command Center software. The software has been downloaded from Citrix.com which requires an account to logon. Our download was the latest edition as of this writing Command Center 5.2 Build 43.14 and we are utilizing the 5.2 Complete Install on Windows.

Installation

Launch the CC_Setup_5.2_43_14.exe file. Click Next on the Introduction dialog.

Check the “I accept the terms of the License Agreement” and click Next.

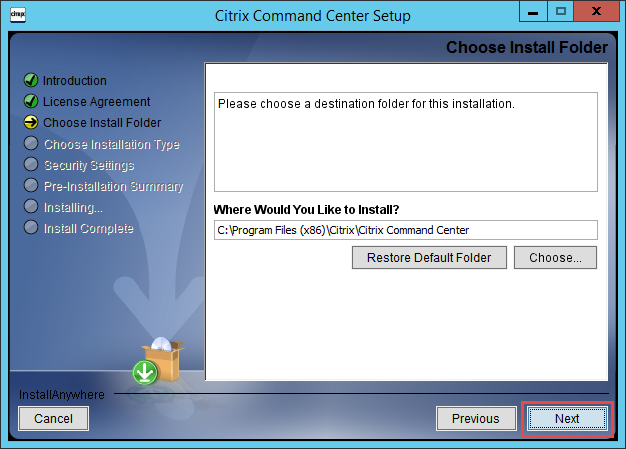

You may choose a different installation folder if you wish, in our case we will use the default. Click Next.

Citrix Command Center provides the ability to utilize Agents for a more distributed setup. In our case, Typical is adequate. Click Next.

Complete the necessary information in the Database Settings dialog. If an SQL server with multiple instances is utilized, you must specify that instance and also you may need to adjust the port as it may not be the default 1433 port. Before proceeding, click Test Connection to confirm you can communicate with the server. If the connection is successful, then click Next.

Click Install at the Pre-Installation Summary.

Click Done when the installation completes.
